Vicat Apparatus, Manual, Bs En3012 X / 002

Description

Standard: BS EN 196-3/480-2

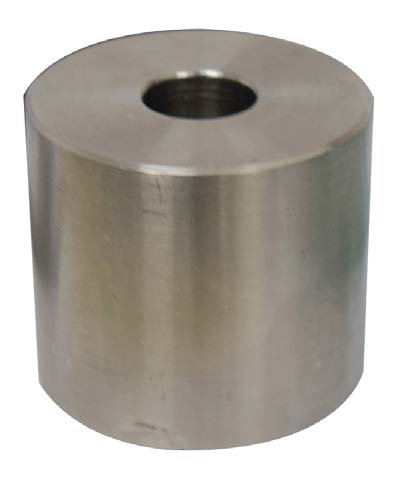

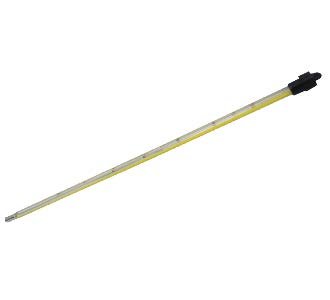

Vicat ApparatusThe Vicat Apparatus is used to determine the setting time and consistency of cement paste, mortar, and concrete. The apparatus consists of a plunger, a mold, and a measuring device.The test involves placing a cement sample in the mold and applying a standard plunger to create an indentation in the sample. The setting time is determined by measuring the depth of penetration of the plunger over time. This helps engineers and researchers understand the characteristics of cementitious materials and ensures that they meet specified standards for construction projects.Features of Vicat ApparatusMetal Stand with Sliding Rod: The frame of the Vicat apparatus is usually made of metal and includes a sliding rod mechanism. This rod allows for precise adjustment of the position of the plunger or needle.Adjustable Indicator: An indicator is attached to the sliding rod, which moves over a graduated scale. This indicator allows for accurate measurement of the depth of penetration of the plunger into the cement sample.Plunger: The bottom end of the sliding rod is attached to a plunger. This component applies a standard test weight (typically 300 g) to create an indentation in the cement sample.Graduated Scale: The frame includes a graduated scale against which the indicator moves. This scale is typically marked in millimeters and allows for precise measurement of the depth of penetration.Technical Specificationsstyle=”font-family: tahoma, arial, helvetica, sans-serif; font-size: 10pt;”>Set Consists Of: Model Number Parts Description 3012 X / 003 ? P 001 Conical Plastic Mould – ?70/80×40 (H) mm 3012 X / 003 ? P 002 Initial Needle ? 1.13 mm ? 0.05 3012 X / 003 ? P 003 Final Needle ? 1.13 mm ? 0.05 3012 X / 003 ? P 004 Consistency Plunger ?10mm 3012 X / 003 ? P 005 Glass Plate 4 x 98 x 98 mmOptional Accessories Model Number Parts Description 3012 X / 003 ? A 001 Additional Weight 700g (BS/EN) 3012 X / 003 ? A 002 Conical Brass Mould (BS) 7034 X / 005 A Glass Thermometer -10?C to 50?C x 1?C Div.Standardstyle=”font-family: tahoma, arial, helvetica, sans-serif; font-size: 10pt;”>Test Procedure of Vicat Apparatus
