Description
Standard: ASTM C127/C136/D558/D698/D1559, EN 932-5/1097-5, BS 1377/1924
Laboratory Drying Oven, Digimatic (1000L)
The Digimatic Control Drying Oven exterior is a general purpose laboratory used such as soil, concrete, asphalt and aggregate. Internal frame made of stainless steel sheet and external casing coated with hard wearing paint & insulated with thick mineral wool. Heat generated by high precision digital controller & temperature range from RT + 10?C to 250?C. All capacity come with fan circulation blower. The oven come with glass viewing door surrounding casing is obtained with 50 mm thick fiber glass & steel shelves. mm thick fiberglass & steel shelves.
?
Technical Specifications of?Laboratory Drying Oven, Digimatic (1000L)
| ?Model Number | ?NL 1017?SS / 006 |
| ?Capacity | 1000L |
| ?Temp. Variation |
RT+10-250?C |
| ?Temp. Fluctuation | ?5.0 ?C |
| ?Ambient Temperature | +5-40 ?C |
| ?Number of Heaters | 3kW x 3 Nos. |
| ?Number of Shelves | 5 nos. |
| ?Load per Shelve | 25/kg 3 For Standard Configuration |
| ?Interior Dimension (mm) | 800(W) ? 800(D) ? 1700(H) |
| ?Exterior Dimension (mm) | 1065(W) ? 1200(D) ? 2005(H) |
| ?Power | 380~415 V, 3 Ph, 9 kW, 42 A, 50/60 Hz |
| ?Approx. Weight | 240 kg |
| ?Timer Range | 999 Hours |
*1 Copy of Manual Instruction for each model
Optional Accessories
| ?Model Number | ?Parts Description |

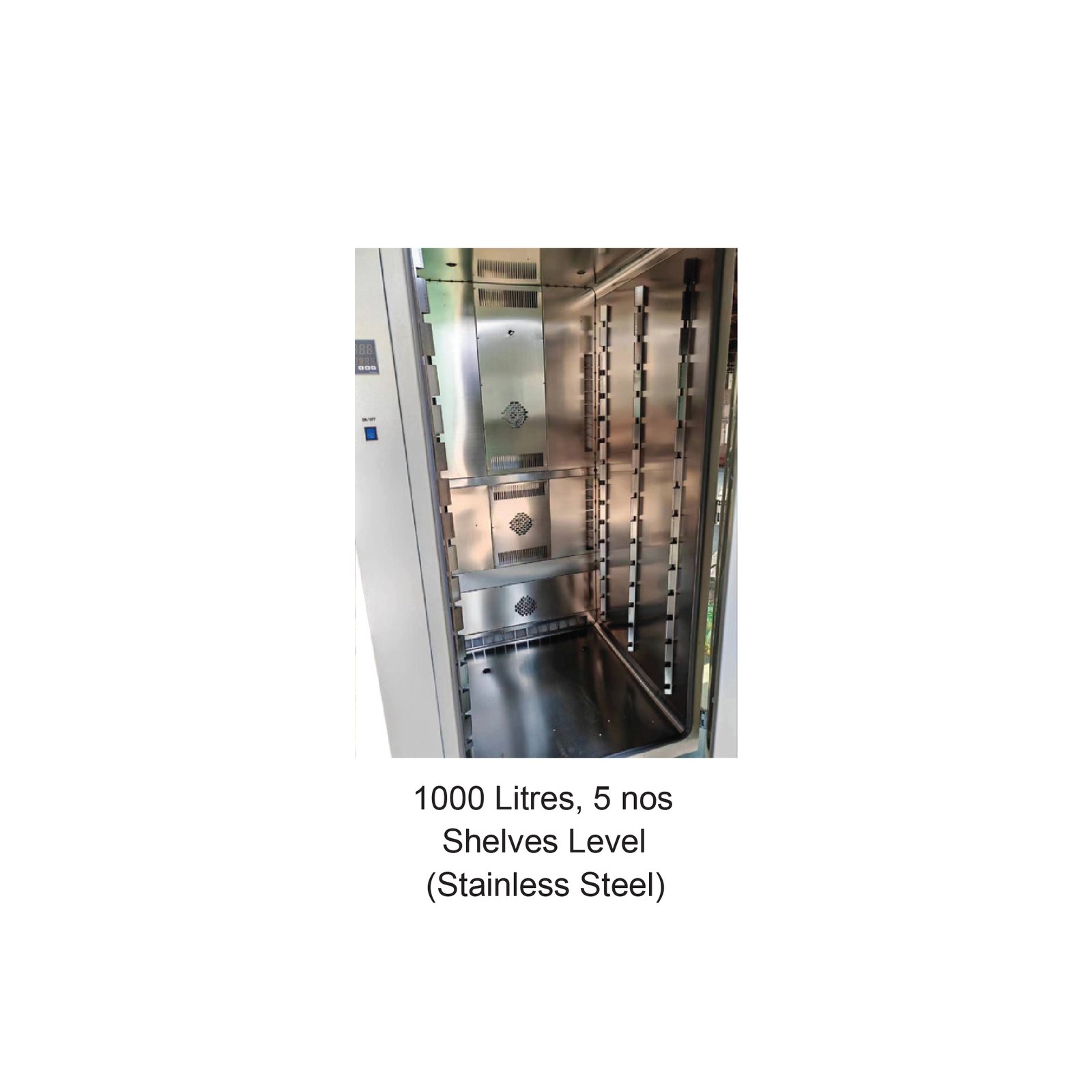

| ?NL 1017 SS / 006 – P001 | 1000 Litres Shelves (Stainless Steel) |
