Description
Standard: EN 196-1, EN ISO 679
Preparation of 40 x 40 x 160 mm cement mortar prisms

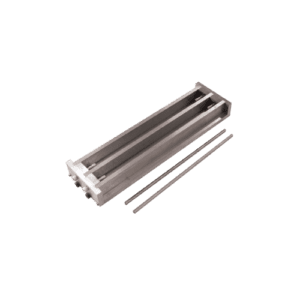

The apparatus is used to compact cement mortar prisms in three gang mould. Made with galvanized chrome steel with quick locking device for prism mould. Easily removable to check weight. Drop height 15 mm with 60 drops per minute cycle. Control panel with main switch. Start / Stop button with digital selector, to select number of cycles which the machine automatically stop. Built in feed hopper and quick clamp.
Technical Specifications:
| Model Number | NL 3006 X / 002S |
| Dimension (mm) | 1150 (L) x 225 (W) x 360 (H) |
| Approx. Weight | 39 kg |
| Power | 220~240 V, 1 Ph, 50 Hz, 0.4 A |
PRODUCT VIDEO
HOW TO OPERATE VIDEO
