Description
Standard: CBR-EN 13286-47, BS 1377:4, ASTM D1883, AASTHO T 193/ MASHALL-EN 12697-34, 13108, ASTM D1559, D6927-06, AASTHO T245, BS598:107
Immediate Bearing Index

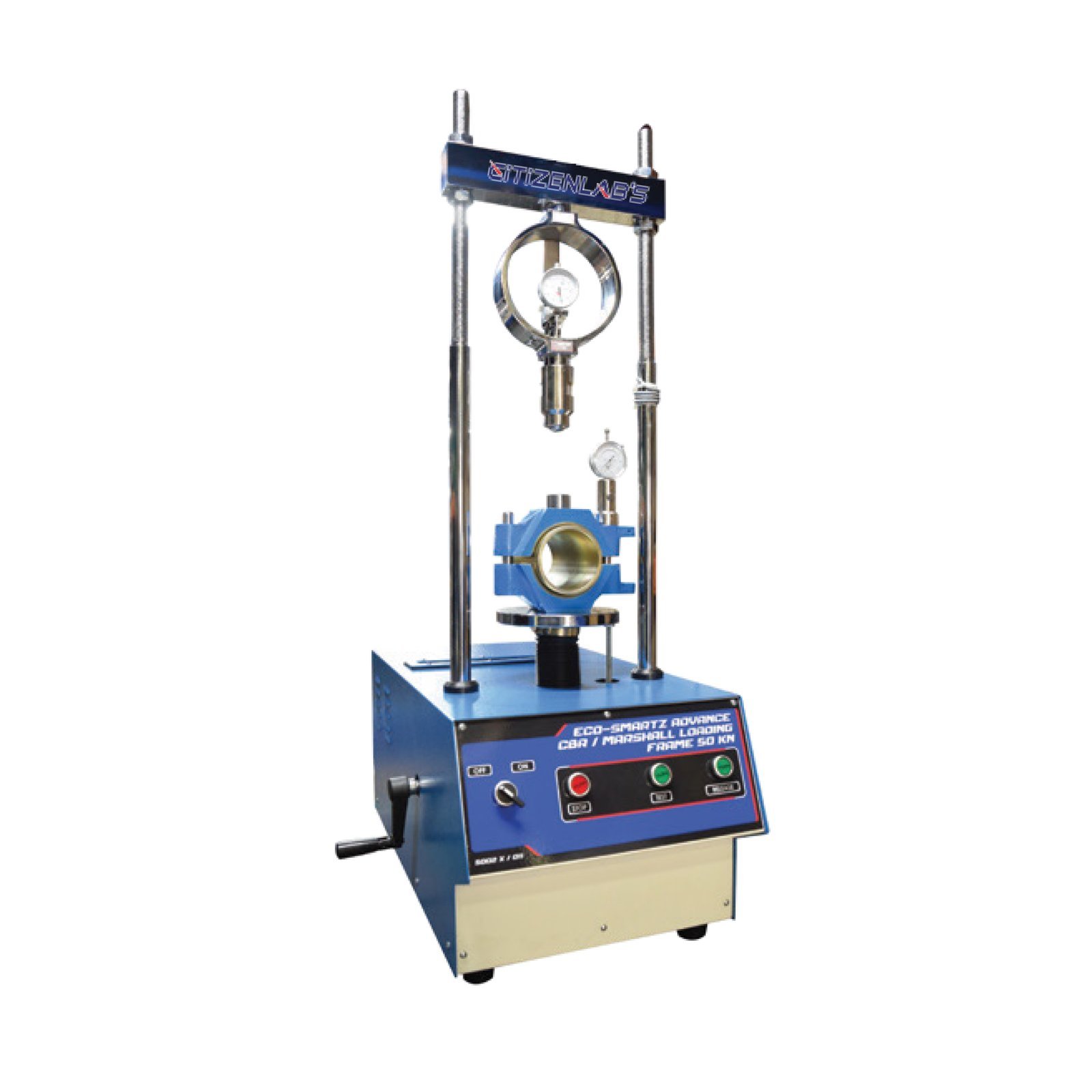

Newly invented bench mounting type machine,with rigid and compact design compare with previous model. By using DC motorised drive system to achieve more reliable and high accurate testing result.
*Supplied without accessories which have to ordered separately.
FEATURES:-
*Compact, table top design
*Energy saving with DC power motor
*Less vibration & noise during operation
Technical Specifications :
| Model Number | 5002 X / 011 |
| Capacity | 50kN |
| Testing Speed | 1.2 mm / min |
| MARSHALL Testing Speed | 50.8 mm / min |
| Plunger Travel |
100 mm |
| Vertical Clearance | 680 mm |
| Horizontal Clearance | 270 mm |
| Product Dimension | 840 (L) x 455 (W) x 1310 (H) mm |
| Packing Dimension | 1000 (L) x 560 (W) x 1500 (H) mm |
| Approx. Product Weight | 185 kg |
| Approx. Packing Weight | 205 kg |
| Power | 220 V, 2.5 Amp, 50 / 60 Hz, 1 ph, 370 W |
*1 Copy of Manual Instructions
