Description
Standard: ASTM C127/C136/ D558/D698/ D1559,EN 932-5/ 1097-5, BS 1377/1924
Drying Sample

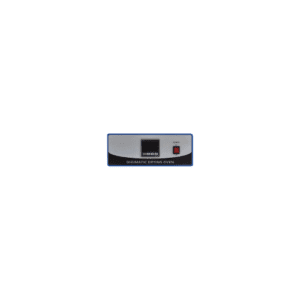

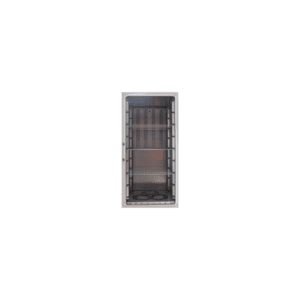

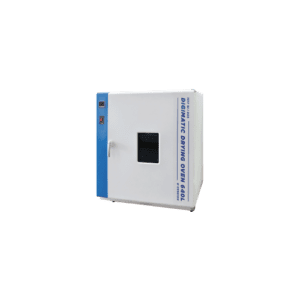

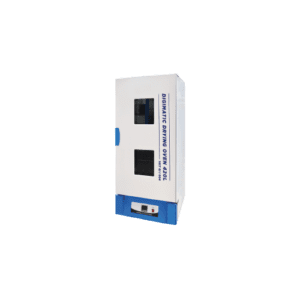

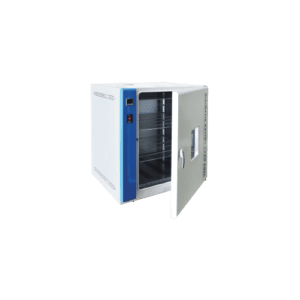

The Digimatic Control Drying Oven exterior is a general purpose laboratory used such as soil, concrete, asphalt and aggregate. Internal frame made of stainless steel sheet and external casing coated with hard wearing paint & insulated with thick mineral wool. Heat generated by high precision digital controller & temperature range from RT + 10。C to 250。C. All capacity come with fan circulation blower. The oven come with glass viewing door surrounding casing is obtained with 50 mm thick fiber glass & steel shelves.
Technical Specifications:
| Model Number | NL 1017 X / 010 |
| Capacity | 429 Litres |
| Temp. Variation | RT+10-250 °C |
| Temp. Fluctuation | ±5.0 °C |
| Temp. Distinguishability | 0.1 °C |
| Ambient Temperature | +5-40 °C |
| Heating Power | 3 kW |
| Interior Dimension | 600(W) × 550(D) × 1300(H) mm |
| Exterior Dimension | 745(W) × 750(D) × 1670(H) mm |
| Packaging Dimension | 815(W) × 800(D) × 1800(H) mm |
| Load Per Shelve | 25/kg 3 For Standard Configuration |
| Gross / Net Weight | 105 / 135 kg |
| Timing Range | 1-9999 min |
| Voltage | 380~415 V, 3 Ph, 50/60 Hz |
*1 Copy of Manual Instruction
