Description
Standard: ASTM D2434, AASHTO T215, BS 1377-5

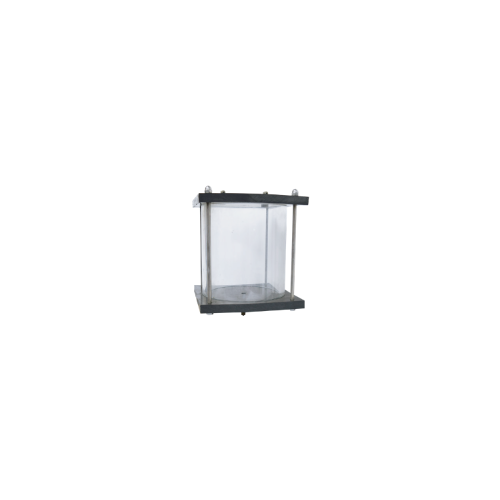

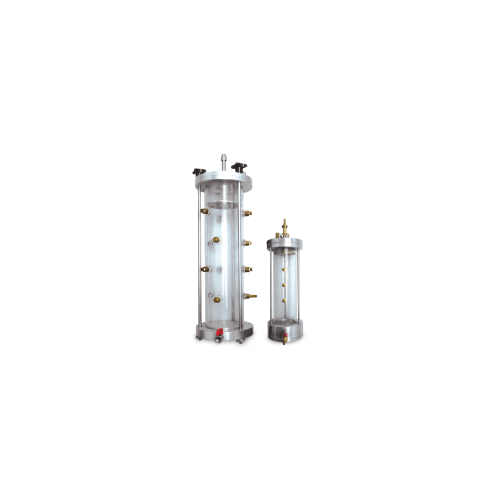

Constant Head Apparatus
It is used for testing permeability of granular soil which are sands & gravels. It consists of a transparent permeability cell mounted on a detachable aluminium top & base plate. The cylinder has pressure points at different levels & connected to the manometer & to the constant level tank. Two different cell available (75 mm & 114 mm diameter).
Technical Specifications :
| Item Description | Permeability Cell | |
| Model Number | 5034 X / 001 | 5034 X / 001 – A 004 |
| Nominal Cell Internal Dia. | 75 mm | 114 mm |
| Take-Off Point | 3 | 12 |
| Cell Wall | Transparent Acrylic | |
| Top & End Plate | Alloy Alluminium Plate | |
