Description
EN 12390-3/772-1/12390-5/12390-6 ASTM C39/C293, AASHTO T 22
Compression & Flexural

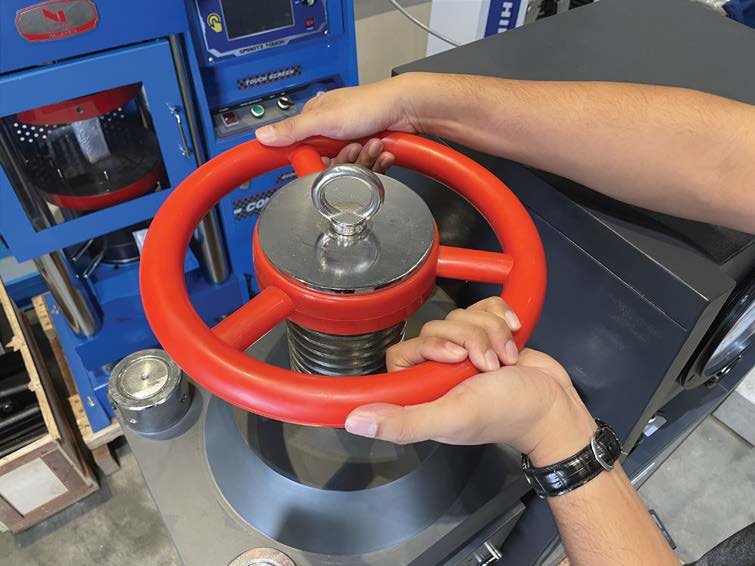

This compression testing machine mainly used for concrete rupture strength testing, cement, plastic sand, and red brick building materials compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
Technical Specifications :
| Model Number | 4000 X / 030 |
| Max. Vertical Clearance | 340 mm |
| Max. Horizontal Clearance | 340 mm |
| Capacity | 2000 kN |
| Relative Error | ±1% |
| Platen Dimension | 250 x 220 mm |
| Piston Ram Diameter | 250 mm |
| Piston Ram Travel | 50 mm |
| Product Dimension | 1000(L) x 500(W) x 1200(H) mm |
| Packing Dimension | 1140(L) x 550(W) x 1610(H) mm |
| Product Weight | 650 kg |
| Power | 220~240 V, 750 W, 1 Ph, 50 / 60 Hz |
