Standard: EN 12697-5, EN 13108, ASTM D2041, AASHTO T209 & T283
Determination of Maximum Density
Used for determining the theoretical maximum specific gravity of uncompacted bituminous paving mixtures. It can also be used for the calculation of the percent air voids in compacted bituminous mixtures & the amount of bitumen absorbed by the aggregates. Three type capacity pyknometer for selection.
Technical Specifications:
| Model Number | Item Description |

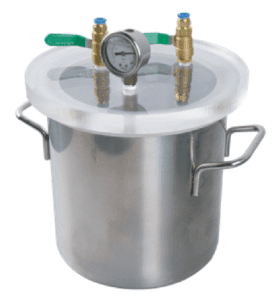

| 2007 SS / 001 | Large Vacuum Pyknometer (10 Litres) Material : Stainless Steel Tank with Acrylic Cover Weight : 3.5 kg |

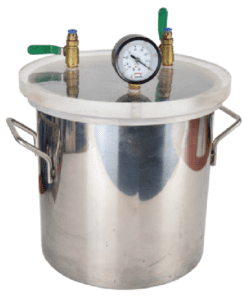

| 2007 SS / 002 | Medium Vacuum Pyknometer (6 Litres) Material : Stainless Steel Tank with Acrylic Cover Weight : 2.6 kg |
| 2007 AC / 001 |
Large Vacuum Pyknometer c/w Clamping Bracket (16 Litres) |

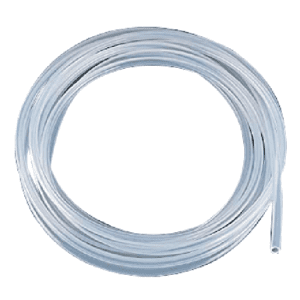

| 2007 X / 001 – P 002 | Tubing for Vacuum (3 meters length) |

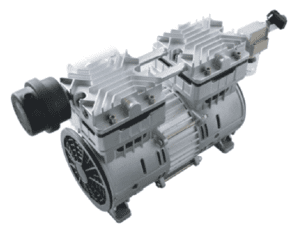

| 7022 X / 006 | Oil Free Vacuum Pump c/w Regulator |

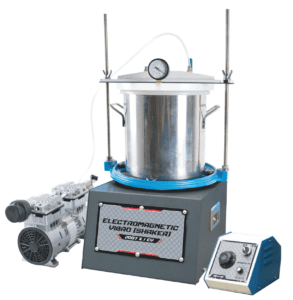

| 2007 X / EV | Product Dimension : 430 (L) x 390 (W) x 320 (H) mm Approx. Weight : 47 kg Power : 220 – 240 V, 1 ph , 50 / 60 Hz , 400 W |
