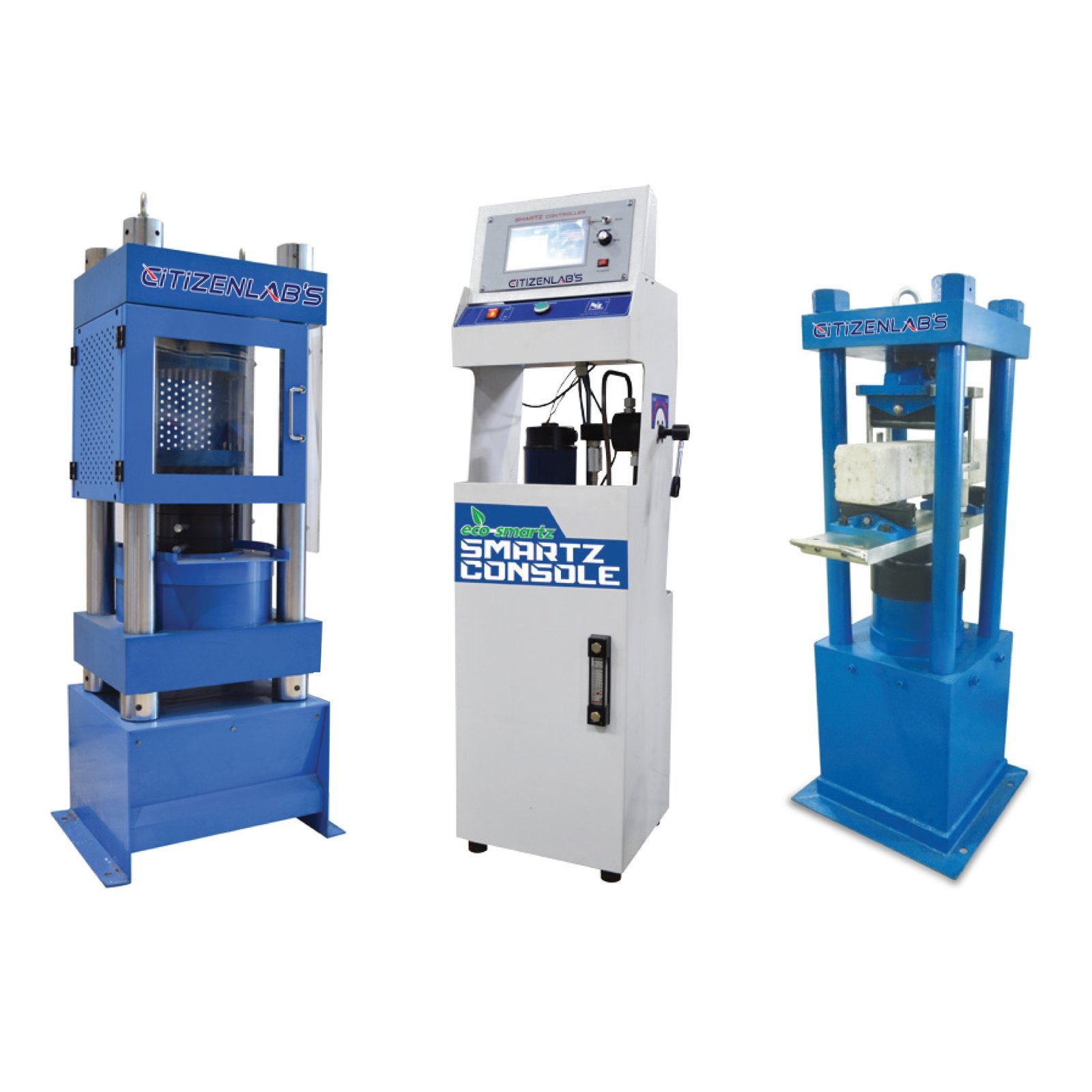

Compression Control System
Stand-alone power and control console unit, using DC Motor couple with 5 element radius injection hydraulic pump and control by Smartz Controller, able to perform with dual frame on compression both high and low range. (APPLICABLE FOR COMPRESSION 50 KN – 3000 KN)
Technical Specifications :
| Model Number | 4000 SCU / HA | 4000 SCU / HR |
| Control Unit |

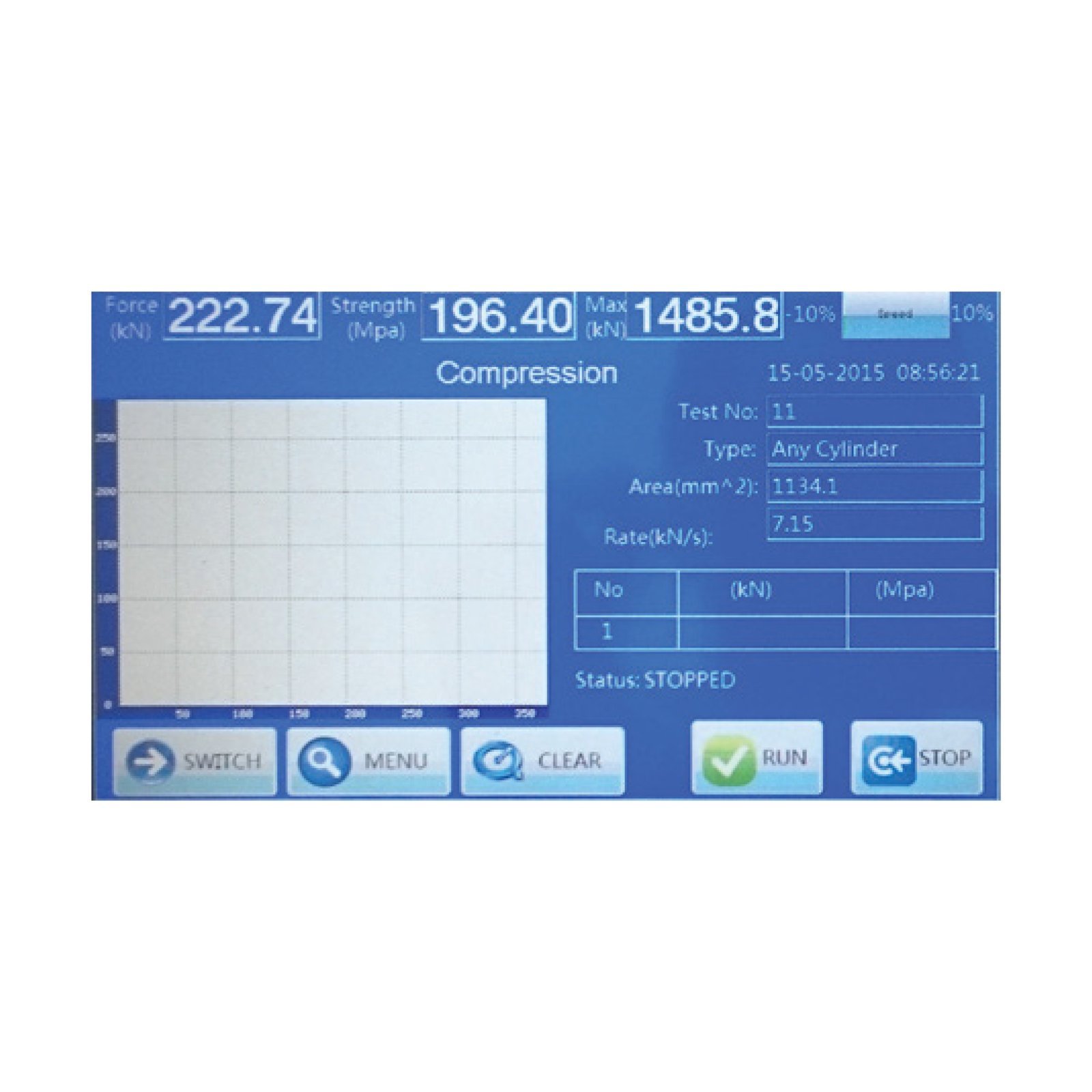

4000 X STC Touch Screen Controller | |
| Motor |
1 Hp D.C Gearmotor c/w Drive Unit | 1 Hp D.C Motor c/w Drive Unit |
| Loading Range | 1 – 300 kN | 301 – 3000 kN |
| Number of Channel | Dual Channel ( High & Low Range) | |
| Pump Pressure Range | 50 Mpa | |
| Rapid Approach |
Manually Push Button | |
| Pressure Release Type | 3 Way Manual Release Valve | |
| Pressure Transducer Range | 10 Mpa | 50 Mpa |
| Approx. Weight | 115 kg | |
| Dimension | 420 (L) x 380 (W) x 1350(H) mm | |
| Power | 220~240V, 750W, 2.5 Amps, 1Ph, 50/60 Hz | |
