Standard: EN 12272-1 & BS 598-108
Spread Measure

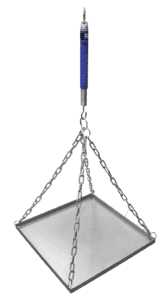

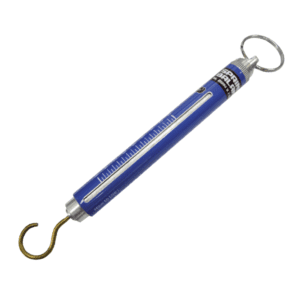

This simple equipment use to determine the rate of spread of binder on the surface of the road. The equipment consists of a metal 300 mm square tray, which can be lifted by means of four chains. The chains are attached to a balance and the rate of spread can be assessed by a balance.
Technical Specifications:
| Model Number | 2014 X / 001 |
| Dimension of Tray | 300 (L) X 300 (W) X 25 (H) – Internal |
| Strength Capacity | Up to 16 kg/m |
| Readability | 0.5 kg/m |
| Max.Load | 2.7 kg |
| Approx.Weight | 5.7 kg |
