Standard: EN 196-2, EN 12390-2, EN 1367-1
?
Drying Sample

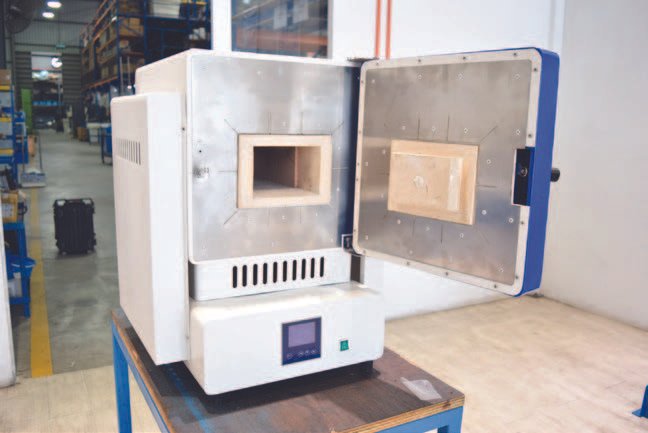

TheMuffle furnaces are general purpose laboratory and heat treating furnaces. Designed for high temperature heating?s. Structure made in sheet-steel, furnace frontal in die casted steel to avoid the aggression of the acid smokes. The laboratory furnace is intended for analysis of various materials and for different kinds of thermal treatment at a temperature from 1000?C up to 1300?C, complete with programmer for setting temperature ramp.
?
Technical Specifications:?
| ?Model Number | ?NL 1011 X / 005 | ?NL 1011 X / 006 | NL 1011 X / 011 |
| ?Max. Temperature | 1300?C | 1200?C | 1200?C |
| ?Alternate Code | ?JK-SX2-6-13N | JK-SX2-5-12N | JK-SX2-15-12N |
| ?Capacity | ?4 litres | 7 litres | 70 litres |
| ?Furnace Chamber & Structure | ?Ceramic chamber with powder coating for external casing | ||

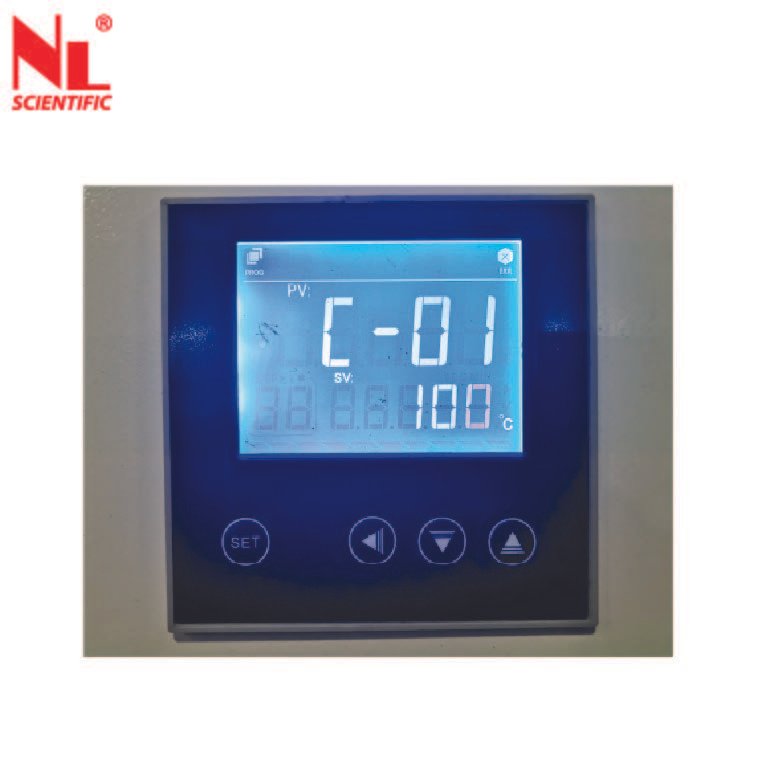

| ?Temperature Control | ?PID Control with 30 segments programming | ||
| ?Heater Type | Silicon Carbide Heater | Nichrome Heater | Nichrome Heater |
| ?Working Space (mm) | 150(W) x 100(H) x 250(D) | 200(W) x 120(H) x 300(D) | 400(W) x 500(H) x 350(D) |
| ?Product Dimension (mm) | 700(L) x 575(W) x 780(H) | 750(L) x 750(W) x 900(H) | 930(L) x 900(W) x 740(H) |
| ?Power | 240 V, 50/60 Hz, 28A,1 Ph, 6kW | 240 V, 50/60 Hz, 22A, 1 Ph, 5kW | 380 – 415 V, 50/60 Hz, 20A, 3 Ph, 8kW |
| ?Approx. Weight | 100 kg | 100 kg | 150 kg |
