Standard: EN 12390-3,-4,-12504-1,1354,1521,13161,1338 772-1, -6, 13286-41 196-1459-2. BS 3892-3, 187.
Compression And Flexural

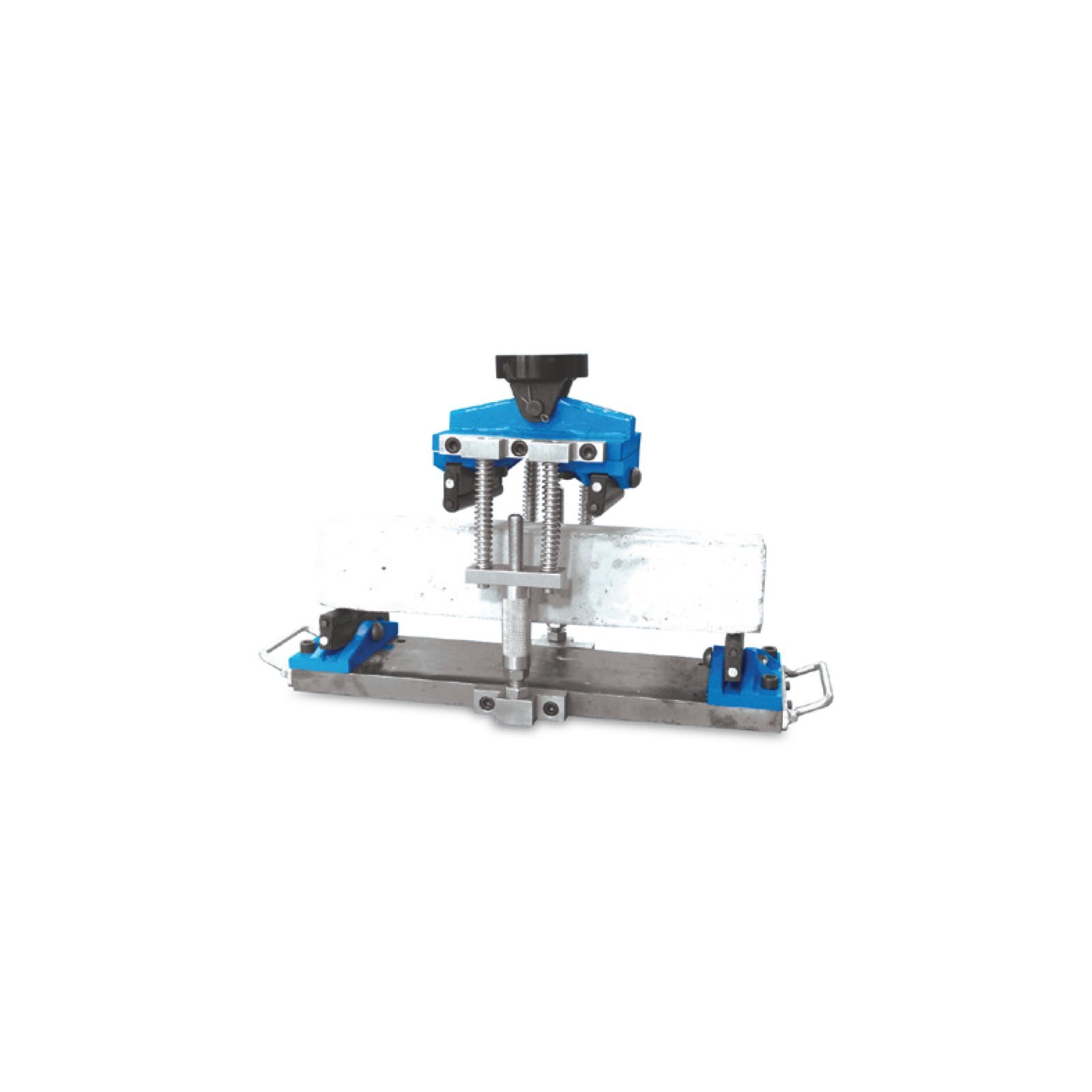

Multi-purpose compression test machine with two compression frames using a single control unit. This machine provides an economic solution to test both concrete & mortar samples without having to purchase two separate machines. Dual channel system enables the calibration to be done independently for each frame. The 500kN frame may also be used as a flexural frame for testing of concrete beams by using the optional flexural
attachment.
Technical Specifications :
| Model Number | 4000 X / 025 |
| Max. Vertical Clearance | 435 mm |
| Max. Horizontal Clearance | 580 mm |
| Capacity | 5000 kN x 1.0 & 999kN x 0.1kg Sensitivity |
| Compression Platen Diameter | 300 mm |
| Piston Ram. Diameter | 440 mm |
| Piston Ram Travel | 50 mm |
| Accuracy | Class 1 |
| Frame Dimension (mm) | 750 (L) x 660 (W) x 1500 (H) |
| Console Dimension (mm) | 620 (L) x 500 (W) x 1300 (H) |
| Approx. Product Weight | 2800 kg |
| Approx. Packing Weight | 2950 kg |
| Power | 220 V, 2.5 Amp, 50 / 60 Hz, 1 ph |
