Standard: EN 1542, EN 1348, EN 1015-12, ASTM C1583
Bonding Strength Evaluation
Used to determine the bonding strength of concrete overlay adhesion. Also suitable for measuring the strength of applied coatings such as plastic, mortars, plasters, tiles, bituminous coats as well as paint & other coatings on metal. It tests at any measuring point on the component, without requiring specimen preparation. However, a suitable depth of coring diameter same as the test disc is prepared prior to pulling off the surface bonding. Supplied without accessories.
ACCESSORIES NEED TO ORDER SEPARATELY.
Technical Specifications :
| Model Number | 4016 X / 004U |
| Max. Load Capacity | 25 X 0.001 kN sensitivity |
| Accuracy & Repeatability | ≤1.0% F.S |
| Piston Travel | 8 mm |

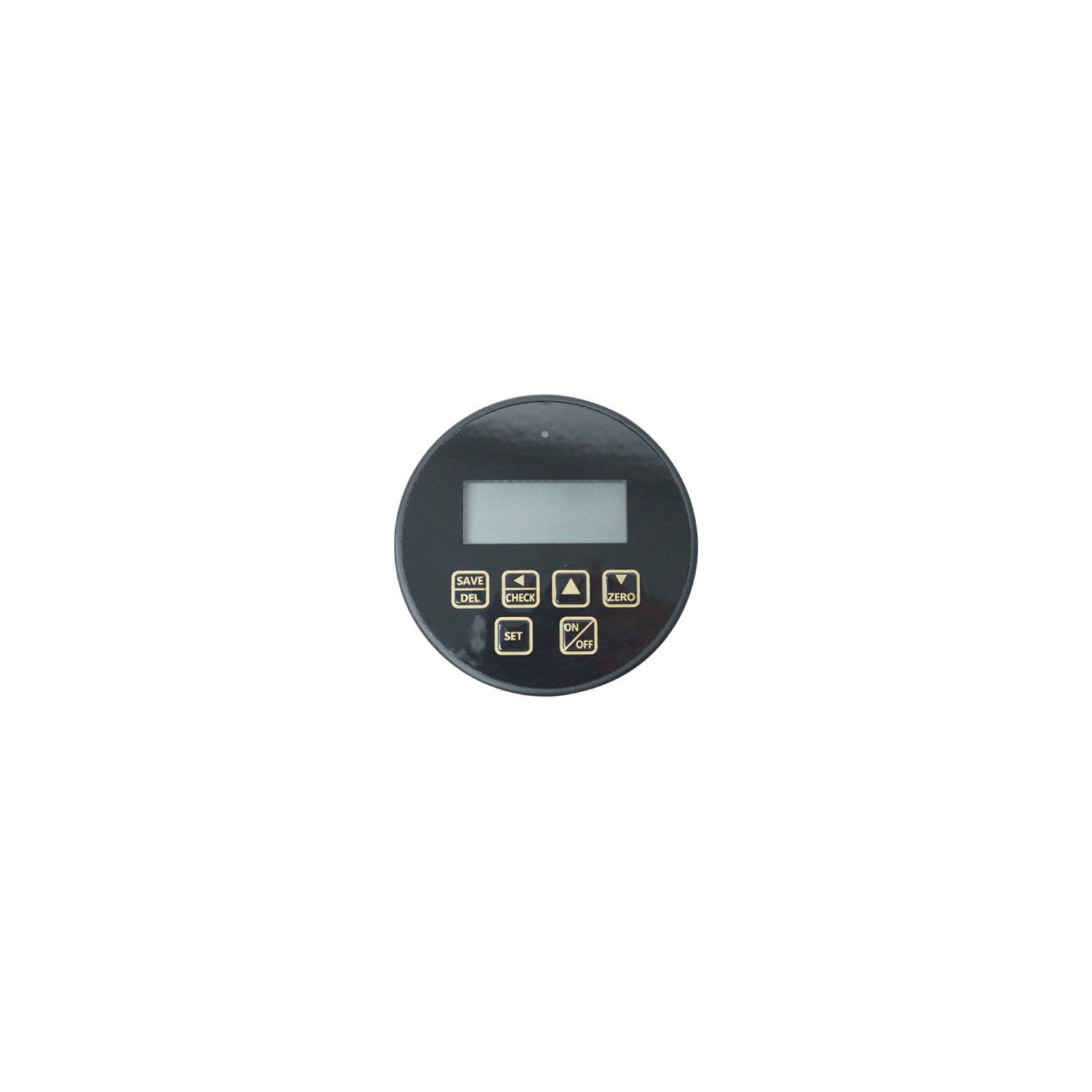

| LED Display | Ø85 mm LED Screen |
| Adjustable Feel Distance | 100 mm |
| Data Memory | 500 Test Result |
| Tester Dimension (LxWxH) | 270 X 200 X 180 mm |

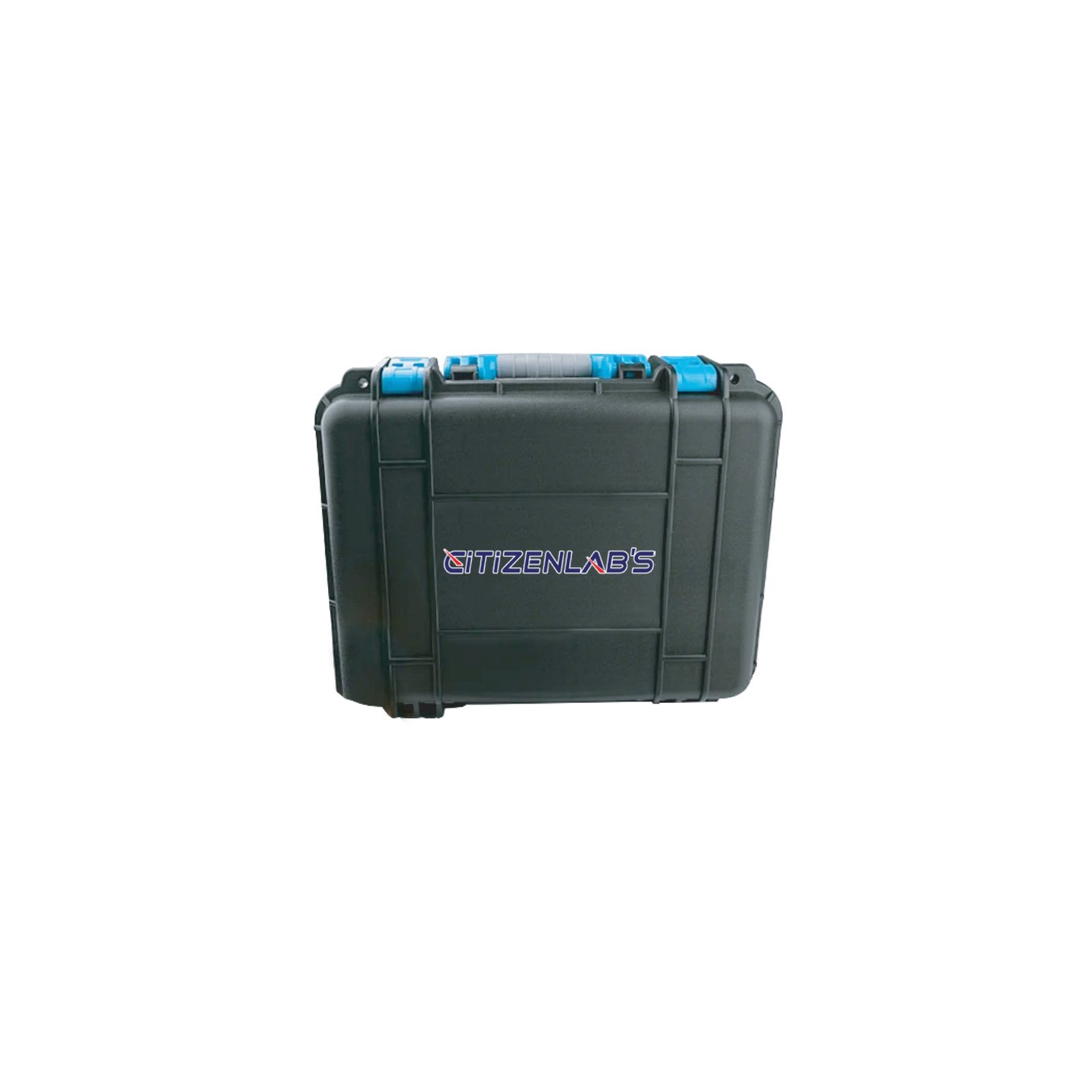

| Carry Case Dimension (LxWxH) | 440 X 370 X 220 mm |
| Tester Weight | 6 kg |
| Power Source | Powered by 2x AAA batteries |
