Standard: ASTM D4695, AASHTO T256-77, NF P98-200-2

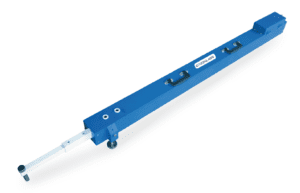

Surface Deflection
This apparatus is utilized to measure the deflection of tire road surface when loaded by the wheels of vehicle. The apparatus manufactured from a lightweight and heavy duty material for easy transportation.
FEATURES:-
*Extremely light weight & heavy duty structure
*With vibrator buzzer
Technical Specifications:
| Model Number | 2019 X / 001 |
| Beam Fulcrum Ratio | 2 : 1 |
| Product Dimension | 1510 (L) x 170 (W) x 280 (H) mm |
| Carry Case Dimension | 1600 (L) x 280 (W) x 260 (H) mm |
| Approx. Product Weight | 9.0 kg |
| Approx. Packing Weight | 22.5 kg |
*1 Copy of Manual Instruction
