Standard: EN 1426, ASTM D5,AASHTO T49
Penetration of Bituminous Materials

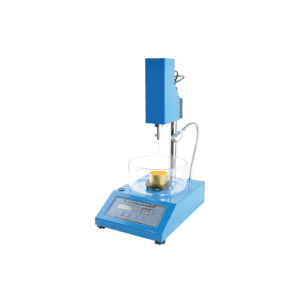

Advance Bitumen Penetrometer is a measurement instrument that utilizes advanced digital displacement sensors combined with microcomputer technology to determine asphalt penetration values. This instrument is easy to use, highly convenient, and features low-temperature drift, making it suitable for a wide range of environmental conditions. It automates, digitizes, and computerizes the testing process, providing a highly precise, stable, and reliable computerized asphalt testing solution.
Technical Specifications:
| Model Number | NL 2001 X / 009 |
| Min. Resolution | 0.01 mm |
| Displacement | 0.1s |
| Max. Measurement Range | 50 mm |

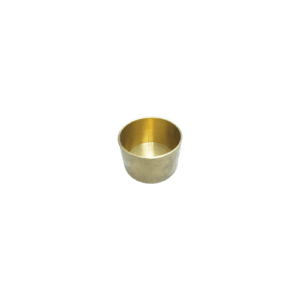

| Sample Container | Ø 55 X 35 (Stainless Steel) |
| Test Time | 5s,15s, 30s, 60s |
| Display | 7” Touchscreen Display |
| Product Dimension (mm) | 400 (L) x 220 (W) x 470 (H) |
| Packing Dimension (mm) | 460 (L) x 250 (W) x 506 (H) |
| Approx. Weight | 10 kg |
| Power | 220~240 V, 1 Ph, 50/60 Hz, 0.2 A, 48 W |
PRODUCT VIDEO
HOW TO OPERATE VIDEO
