Load & Force Verification

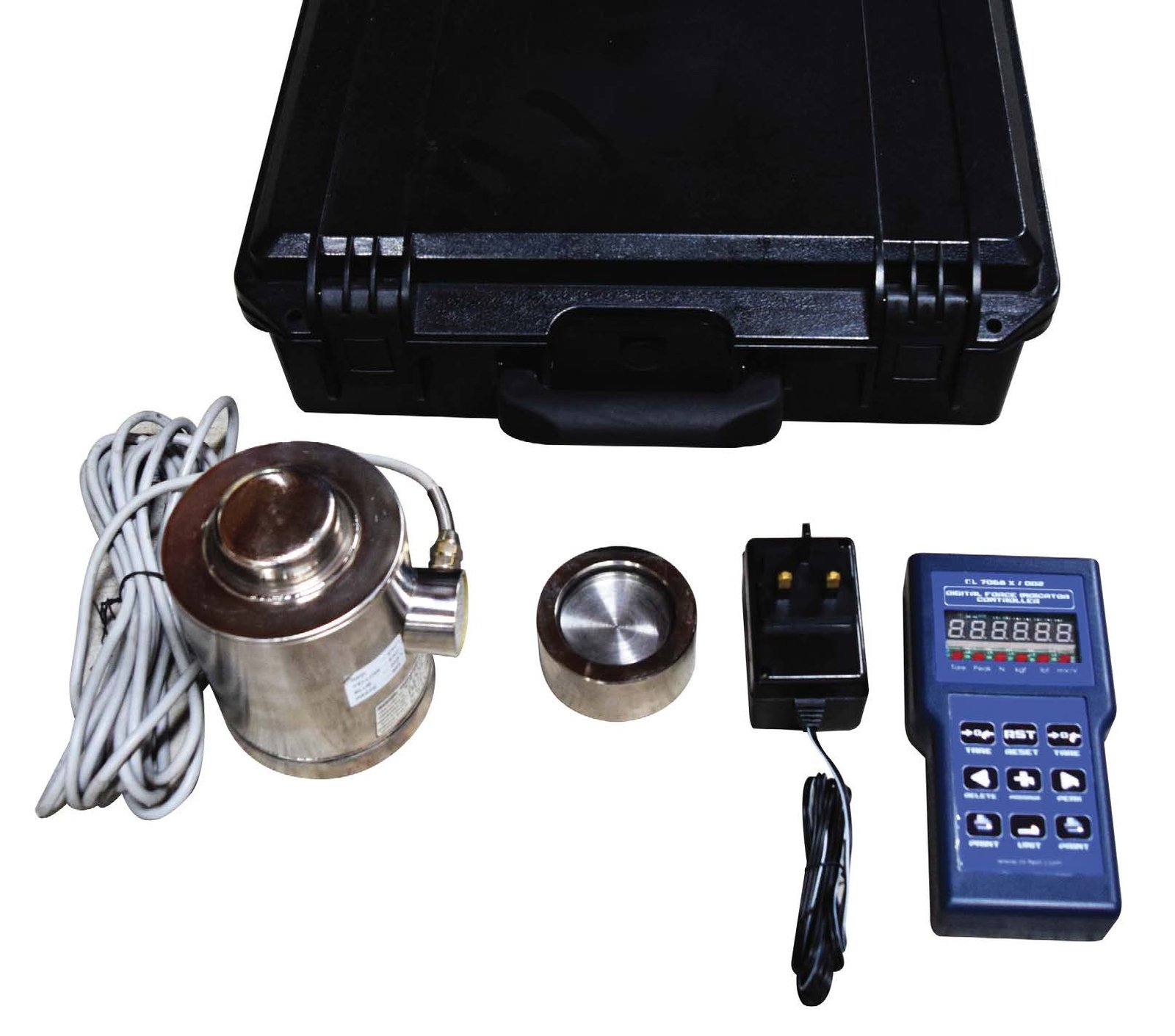

The load cell is suitable for the calibration of compression testing machine. It consists of high quality steel block, named sensitive element, where strains have been fitted: the whole is housed in sheathing. While the load is applied, strains are transmitted to an amplifier which gives a load digital reading.
Technical Specifications :
| Model Number | 4031 X / 006 |
| Capacity |
5000 x 0.01 kN |
| Load Cell Dimension (mm) | Ø180 x 375 (H) |
| Working Temp. | 0 – 45°C, Moisture ≤ 80% RH |
| Accuracy | Class ±1 % |
| Approx. Weight | 28 kg |
| Power | Nicd AC Adaptor as charging source |
